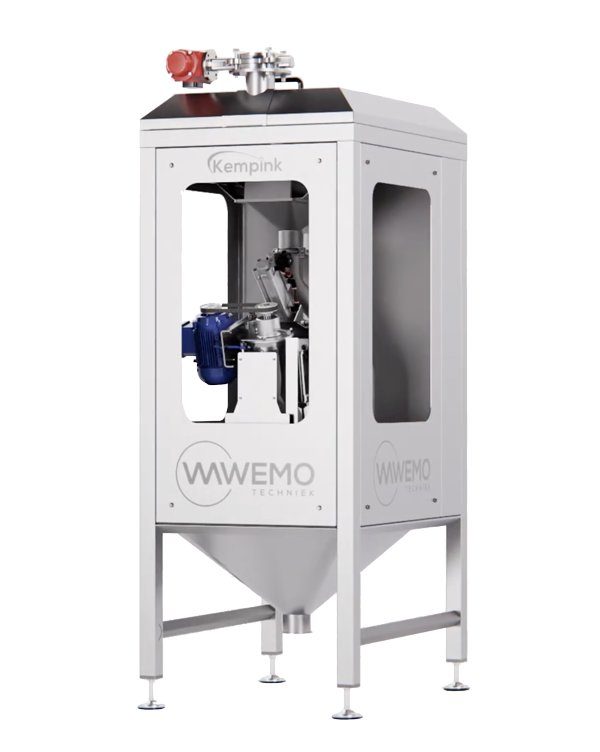

Inline Kempink Tester CTRL
Your production line testing itself.
Fully automated PDI measurement on your production line, per batch, with predictive quality modeling. No production interruption, no operator required. Results and predictions go directly to your MES system in real time.
Continuous inline measurement
Real-time process data — direct MES integration
No production interruption, no operator required
From sample to result, fully automated.
The Ctrl integrates directly into your production line. As soon as your factory automation delivers a sample, the process begins without operator involvement. The sample is pre-sieved to remove production fines. An optimized test volume of approximately 168 cc is measured and isolated automatically. Inside the test cylinder, the rotor creates an upward airflow that replicates the mechanical stress pellets experience during transport and handling. An integrated sieve continuously separates fines from intact pellets throughout the test cycle.
After the test, the scale records the weight of fines and intact pellets independently. The PLC calculates the PDI value and communicates it, with batch references, directly to your MES. The remaining pellets are discharged automatically. Transparent side panels allow visual inspection at any time. Remote support is available via a secure VPN through an eWon router.
The same methodology. A different point in the process.
The Inline Tester measures. The Ctrl measures, predicts, and advises.
The Ctrl is built on exactly the same Kempink test methodology as the Laboratory Kempink Tester. The measurement principle, the standards correlation, and the quality of the PDI result are identical. What changes is where the measurement happens, when it happens, and what happens to the data.
Laboratory Kempink Tester
| Location | Laboratory | |
| Timing | After batch (manual sampling) | |
| Operator | Required | |
| Time to result | Minutes to hours | |
| Data output | Manual recording | |
| Test methodology | Kempink (ASAE/ASABE S269.5 & ISO 17831-1:2025) | |
| Commercial model | Capital purchase |
Inline Kempink Tester
| Location | Production line, inline | |
| Timing | Per batch (automated sampling flow) | |
| Operator | Not required, fully unmanned | |
| Time to result | Real-time | |
| Data output | Automatic MES integration | |
| Test methodology | Kempink (ASAE/ASABE S269.5 & ISO 17831-1:2025) | |
| Commercial model | Quality-as-a-Service |
Not a machine. A subscription to quality
Quality-as-a-Service
Unlike the Laboratory Kempink Tester, the Ctrl is not sold as a capital asset. It is delivered as Quality-as-a-Service. WEMO-techniek retains ownership of the hardware and carries full responsibility for performance. You pay a fixed monthly service fee and a one-time implementation cost. No capital expenditure. No unexpected maintenance costs. No performance risk.
The quality data belongs to your operation. The technology, the uptime, and the performance are WEMO’s responsibility.
When WEMO retains ownership of the hardware, WEMO has a direct operational interest in the system performing to specification. You are not buying a machine and inheriting its maintenance risk. You are subscribing to a performance outcome.
Technical
specification.
View Matrix
| Specification | Detail |
|---|---|
| Measurement parameter | Pellet Durability Index (PDI) |
| Standards | ASAE/ASABE S269.5 (animal feed) · ISO 17831-1:2025 (wood pellets & biomass) |
| Operation | Fully automated — no operator required |
| Sampling | Automated sampling flow from factory automation system |
| Pre-sieve | Automated pre-sieving to remove production fines |
| Test volume | Approx. 168 cc (auto-measured) |
| Test mechanism | Double-fin rotor with upward airflow + integrated sieve |
| Data output | PDI value + batch references communicated directly to MES |
| Pellet discharge | Automatic discharge to container or pipe to lower floor |
| Remote support | Secure VPN via Ewon router |
| Maintenance access | Service door + transparent side panels |
| Test applications | Animal feed pellets · Wood pellets · Biomass pellets |
| Connectivity | Factory automation system (MES/PLC integration) |
| Commercial model | Quality-as-a-Service — fixed monthly fee + one-time implementation cost |
| Power supply | [To be confirmed by WEMO team] |
| Dimensions / weight | [To be confirmed by WEMO team] |
The business case for inline PDI measurement.
Everything you need to make an informed decision about your quality control investment
For the production operator
Central question: what changes in my daily work?
You steer on facts instead of experience alone. Real-time PDI data tells you what your line is producing right now, not what it produced two hours ago. When quality drifts, you see it during the batch and act on the same shift.
For the operations manager
Central question: what does this do to our operational results?
Fewer off-spec batches, less over-conditioning of steam and pressure, and quality data that documents itself for audit. Consistency across shifts and sites becomes visible, comparable, and controllable.
For the financial director
Central question: what is the financial business case?
Under Quality-as-a-Service the Ctrl is a fixed monthly operating expense, not a capital investment. No activation on the balance sheet, no depreciation schedule, no maintenance reserve. Energy savings from reduced over-conditioning and lower rejection rates typically absorb the monthly fee.
